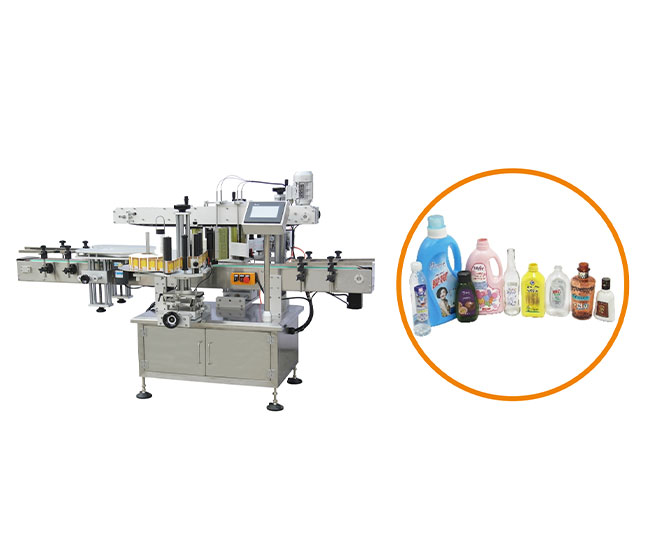

PF-3520 double side labeling machine

PF-3520 double side labeling machine

  • Model/technicalparametersPF-3520
  • Labeling speed(pcs/min)40-200(relate to materialand label size)
  • Labeling accuracy(mm)土1±.0mm(material and label sizes are not counted in)
  • Label size(mm)(L)20-300mm(H)10-184mm
  • Material size(mm)(L)40-200(W)40-180(H)40-350(mm)
  • Roll inside(mm)ф76mm
  • Roll outerside diameter(mm)ф350mm
  • Machine size(mm)(L)3000*(W)1700*(H)1500(mm)
  • Power supplyAC220V50Hz/60Hz3000W

Click online message consultation product details
Submit a message to us and we will contact you as soon as possible
Submit a message to us and we will contact you as soon as possible
*
*

District

AmericaBritain.KoreaJapanRussia*

Use purpose

restorativesHealth care productNutritional tonicfoodDaily cosmeticsstationeryAudiovisual products
Being submitted….
Submitted successfully!
Submission failed! Please try again later
Email error!
Wrong call!

Summary

Double-flank labeling machine consists of conveying mechanismbottle-distributing mechanism, correction mechanism, pressuremechanism, label-feeding mechanism, label- pressing mechanism ancelectric system.The complete machine is made of 304 stainless steeland aluminium alloy and the electric system of world-known brandsensure the lasting stability and reliability of the machine.lt isapplicable to lable double-flank of round, square or flat bottles of thesame kind used to package medicine, food, daily use chemical andother lightindustrial products.One machine with several usage can beused solely or to connect one assembly line.
